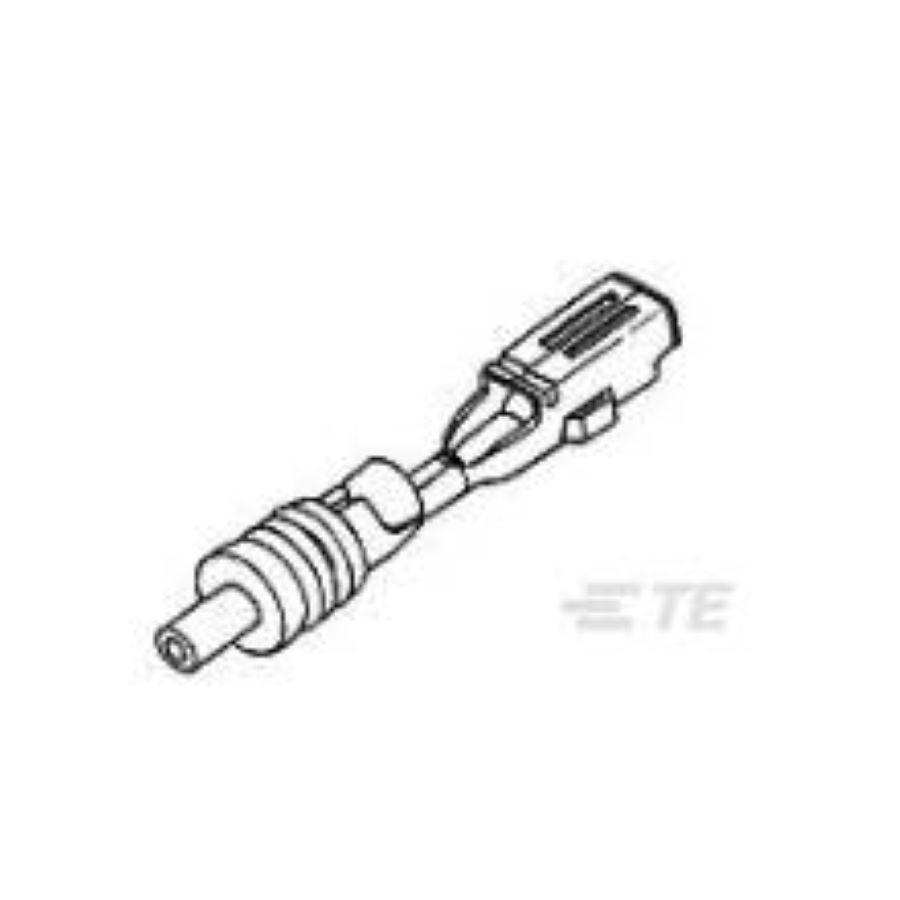

171630-1
Manufacturer:
TE Connectivity
Mfr.Part #:
171630-1
Datasheet:
Description:
Automotive Connectors Cable Female 24 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Length | 16.5 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 3.4 mm |
| Depth | 5 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Number of Terminals | 1 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Shielding | Unshielded |
| Connector Type | Connector, Power, Socket |
| Wire/Cable Gauge | 20 AWG |
| Number of Ports | 1 |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 20 AWG |
| Insulation Diameter | 2.2 mm |
| Mating Tab Width | 1.8034 mm |
| Tab Thickness | 640 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | Yes |
| Current Rating | 6 A |
| Packaging | Reel |
| RoHS | Compliant |
| Wire Gauge Range | 24 AWG to 20 AWG |
Stock: 14832
Distributors
pcbx
pcbxUnit Price$0.41684
Ext.Price$0.41684
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41684 | $0.41684 |
| 10 | $0.20842 | $2.08420 |
| 50 | $0.16032 | $8.01600 |
| 100 | $0.12332 | $12.33200 |
| 500 | $0.09486 | $47.43000 |
| 1000 | $0.07297 | $72.97000 |
| 3000 | $0.05613 | $168.39000 |
| 5000 | $0.04318 | $215.90000 |
| 10000 | $0.03890 | $389.00000 |
| 30000 | $0.03505 | $1051.50000 |
